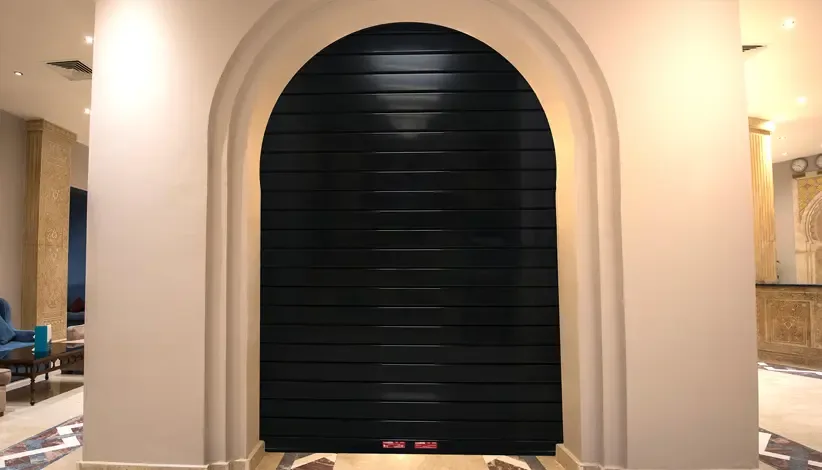

EntryDefender® Door

AtmoShield™ Powder Coating – It is a textured finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added protection.

SpectraShield™ Powder Coating – It is a Polyester finish in more than 180 colors offering durability, aesthetics, superior finish life and cost effectiveness.

LED Light Kit – Provides a high-visible status indication for rolling doors and grilles.

Sensing Edge - Designed with a flexible black rubber TPE material, our sensing edge has two fins that form to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to over set the bottom door limit. On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590.

SmartSync™ Wireless Safety Edge – This is used to upgrade the existing sensing edge to wireless communication between the transmitter and the receiver. This eliminates the coiling cord in the door opening.

PED0101-05 : 5 minute resistance rating

PED0101-15 : 15 minute resistance rating

PED0101-60 : 60 minute resistance rating

U.S. Department of State Standard for forced entry SD-STD-01.01, Revision G (Amended) for 5, 15 and 60 minute attacks.

The maximum size available will vary slightly based on the wall construction.

If the wall construction is steel, the maximum size is 13’ 11 ¼” wide by 16’ high.

If the wall construction is concrete, the maximum size is 13’ 8 ¾” wide by 16’ high.

Designed to operate 20,000 cycles (lifetime) as standard, but can also be customized to handle additional cycles if desired.

Standard Materials & Finishes

The standard materials and finishes are:

Curtain – 12 gauge 4” flat steel flat with SpectraShield® powder coat in gray.

Guides – Steel with powder coating to match the curtain.
