Architectural Series — Aluminum
Full-view aluminum doors for showrooms, fire stations, and modern storefronts
Models
Clopay’s aluminum full-view doors are ideal for commercial buildings requiring visibility, access to natural lighting and a modern look. They're a great choice for applications ranging from restaurants and fire stations to car dealerships. These overhead doors come with an aluminum frame construction and also come in solid aluminum if privacy is preferred. You can also customize your door with a wide variety of window, color, design and performance options.
| Model | Thickness | Spacing | R-Value | U-Factor | Max Width* | Max Height* |
|---|---|---|---|---|---|---|
| 904 | 2-1/8" | Equal width & spacing | - | - | 24'2" | 20'0" |
| 904U*** | 2-1/8" | Equal width & spacing | 3.8** | 0.73 | 20'2" | 20'0" |
| 906 | 2-1/8" | Minimal stiles | - | - | 22'2" | 16'0" |
| 906U*** | 2-1/8" | Minimal stiles | - | - | 20'2" | 16'0" |
*Maximum Width and Height values listed are Standard sizing.
**With insulated low-e argon filled glass
***With Clopay's proprietary polyurethane Intellicore insulation.
Tested door U-factor is in accordance with DASMA 105
Options
| Full-View (904) | Solid Aluminum (904) |
|---|---|
| Full-View (906) |
*Mirrored and laminate not available in 1/2"
Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polygal thickness available in 5/8". Low-E available on insulated glass.
**Available in 904W8/904UW8 only
+Only available on doors equipped with C-Power ® technology. Glass available in insulated tempered or laminated.
*Acrylic thickness is 1/8", black only available in 1/4" thickness.
Hardcoated Acrylic options available
Low E glass available
Glass thickness available in 1/8", 1/4" and 1/2"
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Custom powder coat, Color Blast®, and anodized finishes available.
- RAL color powder coat
- 187 different powder coat offerings
- Custom Colors with Color Blast® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
Available with C-Power™ enabled Click-to-Conceal™ Panels, an innovative glass that switches between clear and opaque states at the click of a button, offering unparalleled privacy and design flexibility. Learn more.
Glass Panel Options
| Full-View (904) | Solid Aluminum (904) |
|---|---|
| Full-View (906) |
Glazing Material Options (904/904U)
*Mirrored and laminate not available in 1/2"
Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polygal thickness available in 5/8". Low-E available on insulated glass.
**Available in 904W8/904UW8 only
+Only available on doors equipped with C-Power ® technology. Glass available in insulated tempered or laminated.
Glazing Material Options (906/906U)
*Acrylic thickness is 1/8", black only available in 1/4" thickness.
Hardcoated Acrylic options available
Low E glass available
Glass thickness available in 1/8", 1/4" and 1/2"
Color Options
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Custom powder coat, Color Blast®, and anodized finishes available.
Premium finishing options include:
- RAL color powder coat
- 187 different powder coat offerings
- Custom Colors with Color Blast® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
Premium Panel Option
Available with C-Power™ enabled Click-to-Conceal™ Panels, an innovative glass that switches between clear and opaque states at the click of a button, offering unparalleled privacy and design flexibility. Learn more.
Performance Options Available
Construction
| Model 904/904U, 906/906U | |
|---|---|
| Exterior Skin Pattern | : Recessed aluminum panel |
| Exterior Aluminum Gauge | : 6063-T5 Aluminum |
| Rails and Stiles | : Polyurethane Insulated (904U, 906U only) |
| Colors | : Clear Aluminum (Anodized), Standard White, Bronze (Painted), Chocolate (Painted), Bronze (Anodized), Dark Bronze (Anodized) |
| Limited Warranty | : 5-Year Finish / 1-Year Material and Workmanship / 1-Year Hardware |
Specs/Drawings
Brochures
Brochure Model 906/906U
Model 906 aluminum full-view doors boast a sleek panel design with fewer lines and angles.
904/904U Brochure
Model 904 and 904U’s design-forward look is enhanced with well-balanced stile profiles and contemporary lines.
Brochure Commercial Idea Book
At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.
C-Power Enabled Click-to-Conceal
Springs and Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware, take a look at Options.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details
Our Architectural Design Support team has you covered!
Engage with our team of qualified professionals to address all of your door needs.
About Clopay/History
Share Your Style
Awards & Recognition
Griffon Corporation
Distribution Centers
Register Your Door
National Accounts
Copyright © 1996-2026 Clopay Corporation. All Rights Reserved
Commercial Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware, take a look at Options.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.
Commercial Torsion Springs
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details
Our Architectural Design Support team has you covered!
Engage with our team of qualified professionals to address all of your door needs.
About Clopay/History
Share Your Style
Awards & Recognition
Griffon Corporation
Distribution Centers
Register Your Door
National Accounts
Copyright © 1996-2026 Clopay Corporation. All Rights Reserved

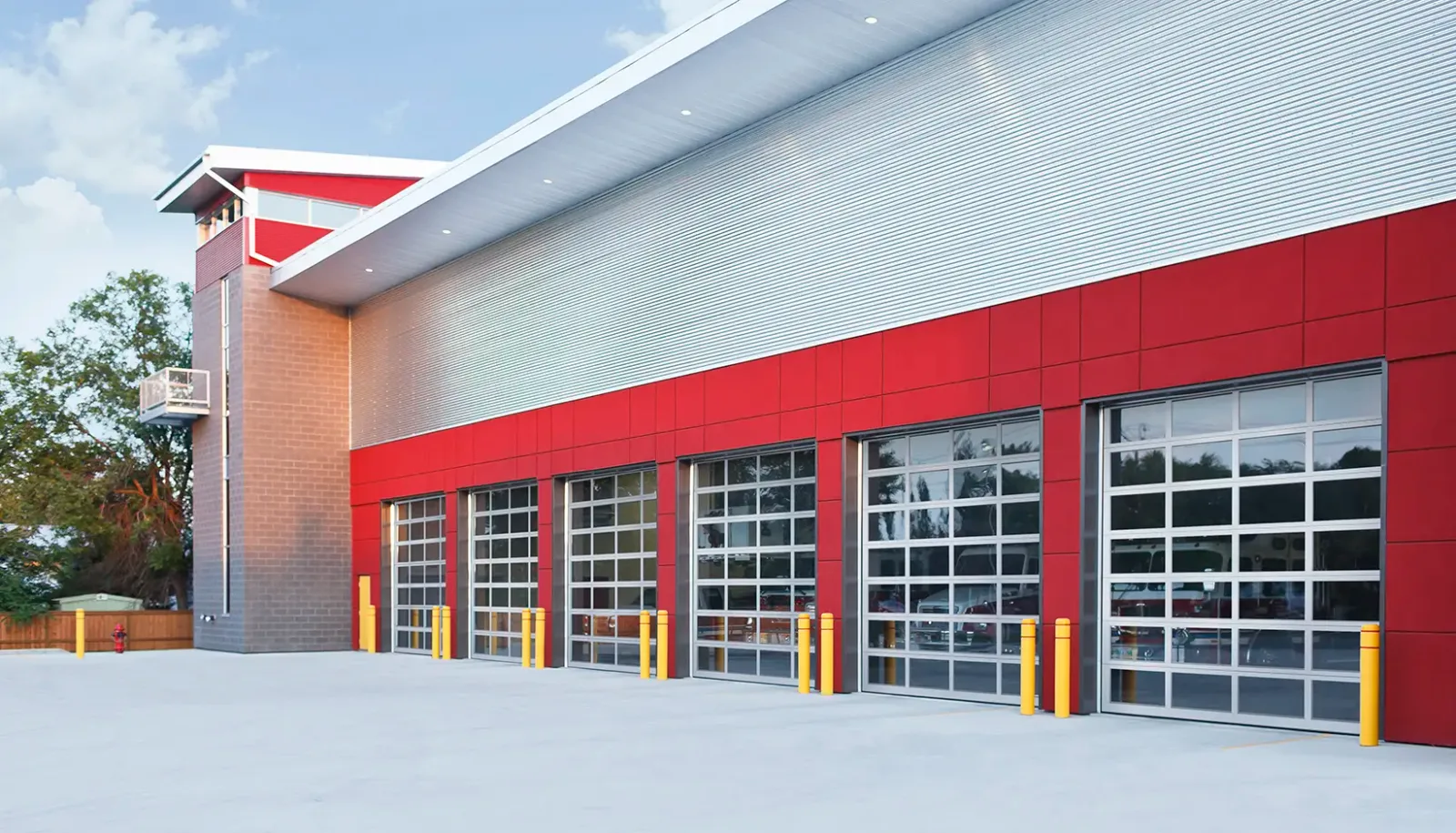

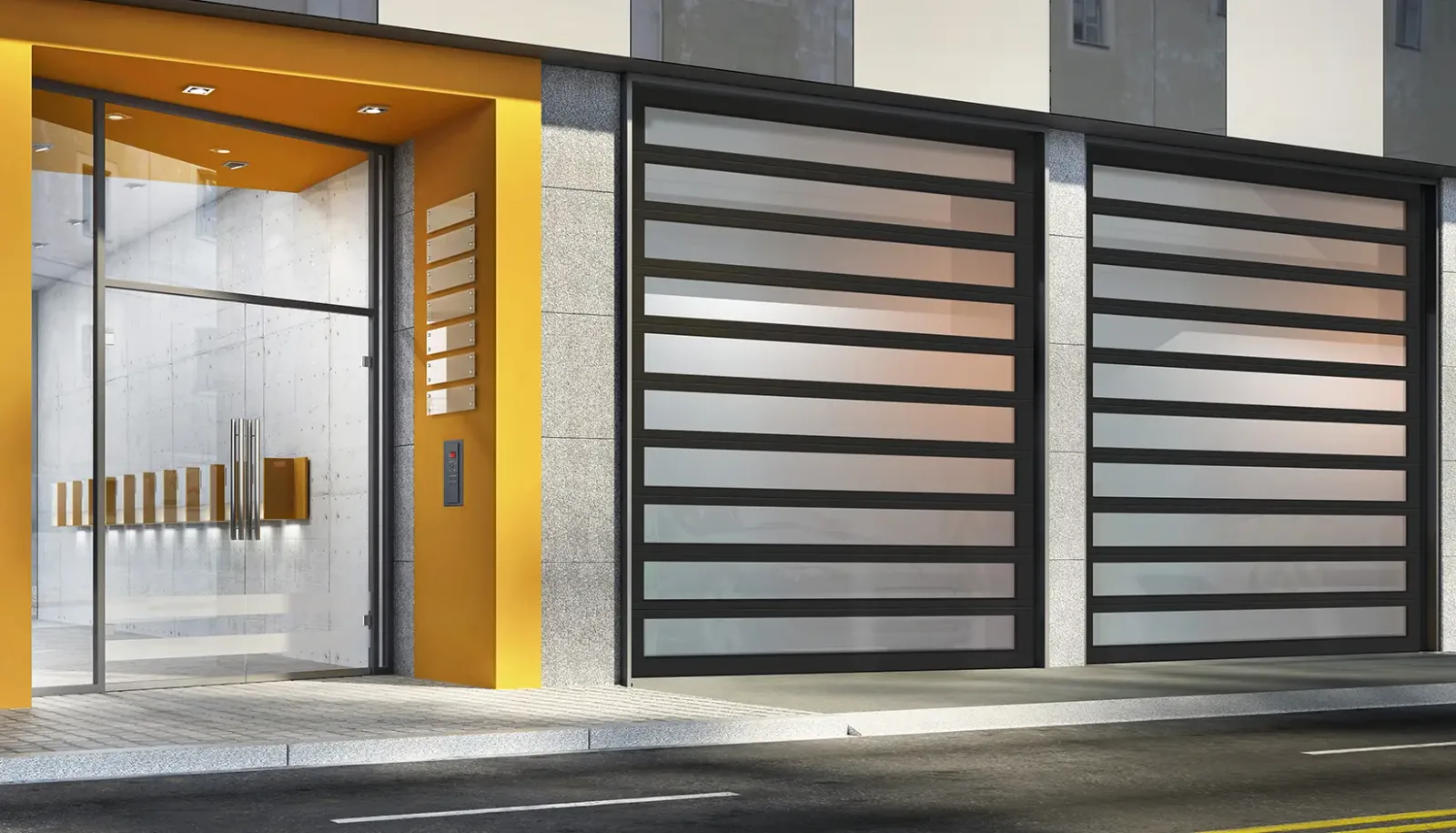

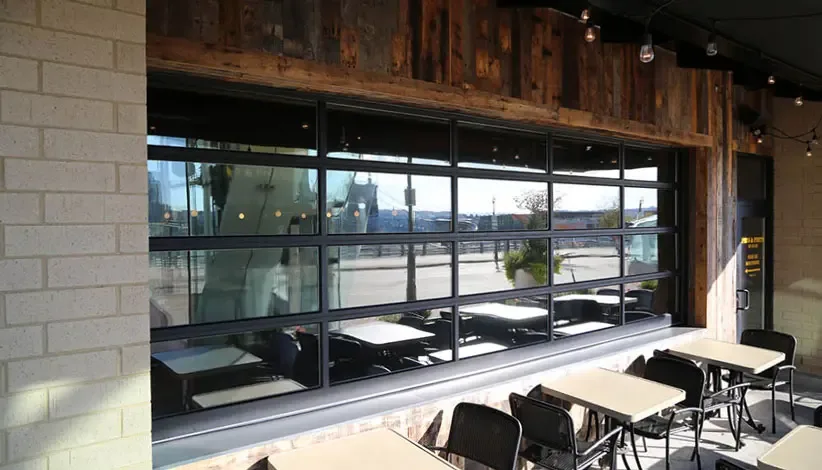

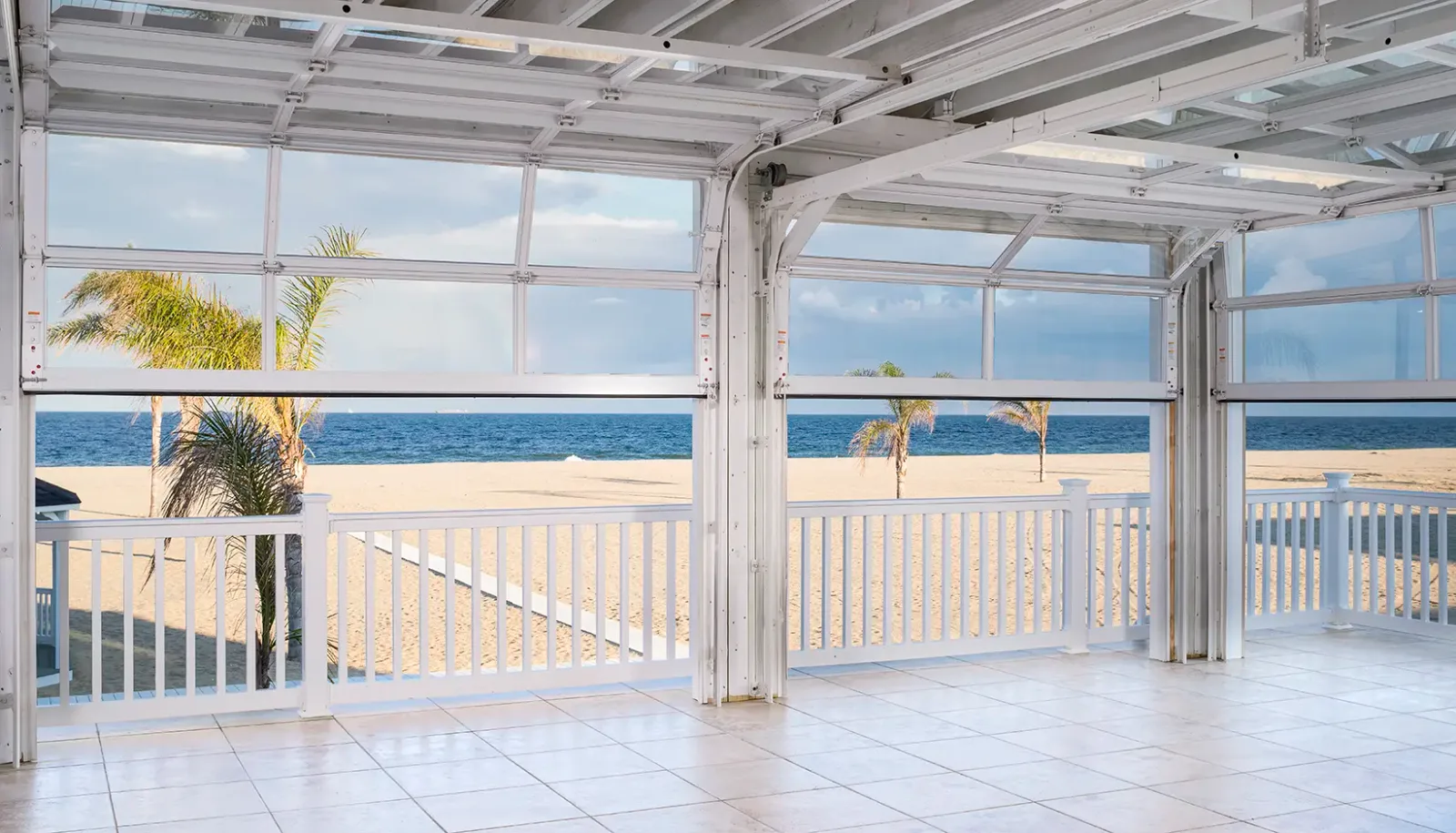

Photo Gallery
