VertiStack® Clear Door
Space-saving clear door that stacks vertically above the opening
Models
| Min Opening Width* | 4'6" |
|---|---|
| Max Opening Width* | 20'0" |
| Min Opening Height | 4'0" |
| Max Opening Height | 14'0" |
| Thickness | 2 1/8" |
| Insulation | N/A |
| Min Opening Width* | 4'6" |
|---|---|
| Max Opening Width* | 20'0" |
| Min Opening Height | 4'0" |
| Max Opening Height | 14'0" |
| Thickness | 2 1/8" |
| Insulation | Intellicore insulated rails & stiles |
*The door will always be 6” wider than the opening width, so door width range is 5’0 to 20’6”.
This product is available for commercial applications only, click here for the residential version.
For interior mount only.
| Door Opening Width* | Number of Panels |
|---|---|
| 4'6" - 8'8" | 2 |
| 8'9"-12'8" | 3 |
| 12'9"-15'8" | 4 |
| 15'9"-19'8" | 5 |
| 19'9"-20'0" | 6 |
| Door Height | Number of Sections |
|---|---|
| 4'0"-5'8" | 3 |
| 5'9"-7'0" | 4 |
| 7'1"-8'4" | 5 |
| 8'5"-9'8" | 6 |
| 9'9"-11'2" | 7 |
| 11'3"-12'8" | 8 |
| 12'9"-14'0" | 9 |
Florida Product Approval #FL42132
Model VS904 Standard Specifications
| Min Opening Width* | 4'6" |
|---|---|
| Max Opening Width* | 20'0" |
| Min Opening Height | 4'0" |
| Max Opening Height | 14'0" |
| Thickness | 2 1/8" |
| Insulation | N/A |
Model VS904U Standard Specifications
| Min Opening Width* | 4'6" |
|---|---|
| Max Opening Width* | 20'0" |
| Min Opening Height | 4'0" |
| Max Opening Height | 14'0" |
| Thickness | 2 1/8" |
| Insulation | Intellicore insulated rails & stiles |
*The door will always be 6” wider than the opening width, so door width range is 5’0 to 20’6”.
This product is available for commercial applications only, click here for the residential version.
For interior mount only.
Calculate Number of Panels and Sections
| Door Opening Width* | Number of Panels |
|---|---|
| 4'6" - 8'8" | 2 |
| 8'9"-12'8" | 3 |
| 12'9"-15'8" | 4 |
| 15'9"-19'8" | 5 |
| 19'9"-20'0" | 6 |
| Door Height | Number of Sections |
|---|---|
| 4'0"-5'8" | 3 |
| 5'9"-7'0" | 4 |
| 7'1"-8'4" | 5 |
| 8'5"-9'8" | 6 |
| 9'9"-11'2" | 7 |
| 11'3"-12'8" | 8 |
| 12'9"-14'0" | 9 |
Product Approvals:
Florida Product Approval #FL42132
Options
| FULL-VIEW (VS904/VS904U) |
|---|
*Mirrored and laminate not available in 1/2"
Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8".
**Tempered glass options available
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Strap Brake Safety System
Situated at the bottom section of the door and within the wall angles, this system is triggered when strap tension is lost. It releases the brake lever and engages the brake teeth to prevent the bottom and subsequent sections from falling.
Optional spring and motor covers give VertiStack® Clear Doors a more elegant and refined look with even more versatility.
Spring Covers - provide a more design-driven look
Motor Covers - conceal the operator for a more attractive look
Motor Operator - Operates the door at the push of a button. Includes an auxiliary hand chain for emergency use only.
Manual Hand Chain Operator - No power needed. Allows the door to operate with a manual hand chain hoist
Glass Panel Options
| FULL-VIEW (VS904/VS904U) |
|---|
Glazing Material Options
*Mirrored and laminate not available in 1/2"
Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8".
**Tempered glass options available
Color Options
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Safety Features
Strap Brake Safety System
Situated at the bottom section of the door and within the wall angles, this system is triggered when strap tension is lost. It releases the brake lever and engages the brake teeth to prevent the bottom and subsequent sections from falling.
Spring & Motor Covers
Optional spring and motor covers give VertiStack® Clear Doors a more elegant and refined look with even more versatility.
Spring Covers - provide a more design-driven look
Motor Covers - conceal the operator for a more attractive look
Operators
Motor Operator - Operates the door at the push of a button. Includes an auxiliary hand chain for emergency use only.
Manual Hand Chain Operator - No power needed. Allows the door to operate with a manual hand chain hoist
Specs/Drawings
Brochures
Brochure VS904
VertiStack™ Clear commercial doors have a clean, modern look and compact stacking sections that save ceiling space.
Brochure Commercial Idea Book
At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.
Springs and Hardware
25,000 cycle torsion springs
Section locking devices on both sides of the door for increased security
High-strength strap assembly
Commercial 10 ball rollers
2” track mounted to a full-height 12-gauge wall angle
This product is available for commercial applications only, not for residential applications at this time.
Learn more about our VertiStack Clear Door
Play video for VertiStack Clear VertiStack Clear Sporting a sleek, modern aesthetic, our door offers no visible hinges, tracks or cables. Plus, you've got a range of aluminum finishes and window materials to choose from. Enjoy the blend of style and function!
About Clopay/History
Share Your Style
Awards & Recognition
Griffon Corporation
VertiStack Clear
Sporting a sleek, modern aesthetic, our door offers no visible hinges, tracks or cables. Plus, you've got a range of aluminum finishes and window materials to choose from. Enjoy the blend of style and function!
About Clopay/History
Share Your Style
Awards & Recognition
Griffon Corporation
Distribution Centers
Register Your Door
National Accounts
Copyright © 1996-2026 Clopay Corporation. All Rights Reserved
Photo Gallery

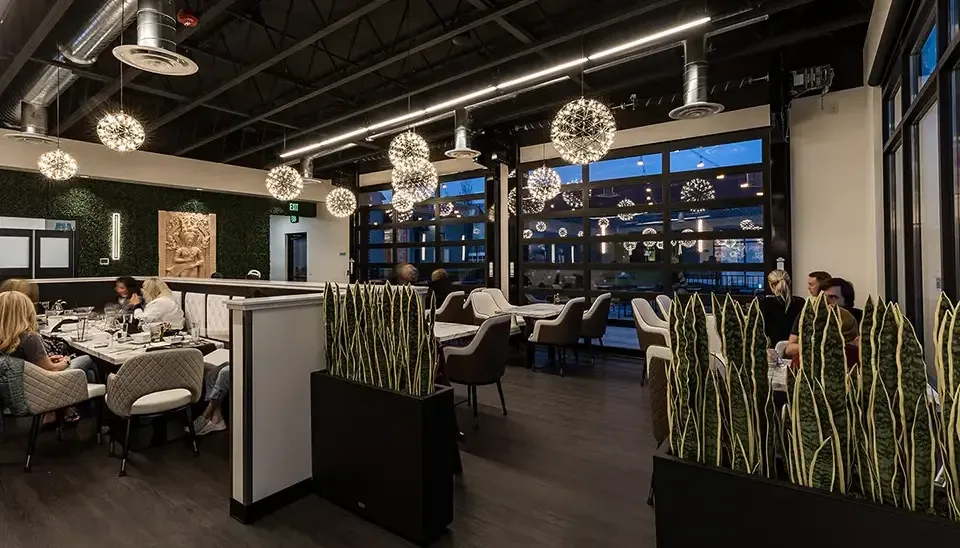

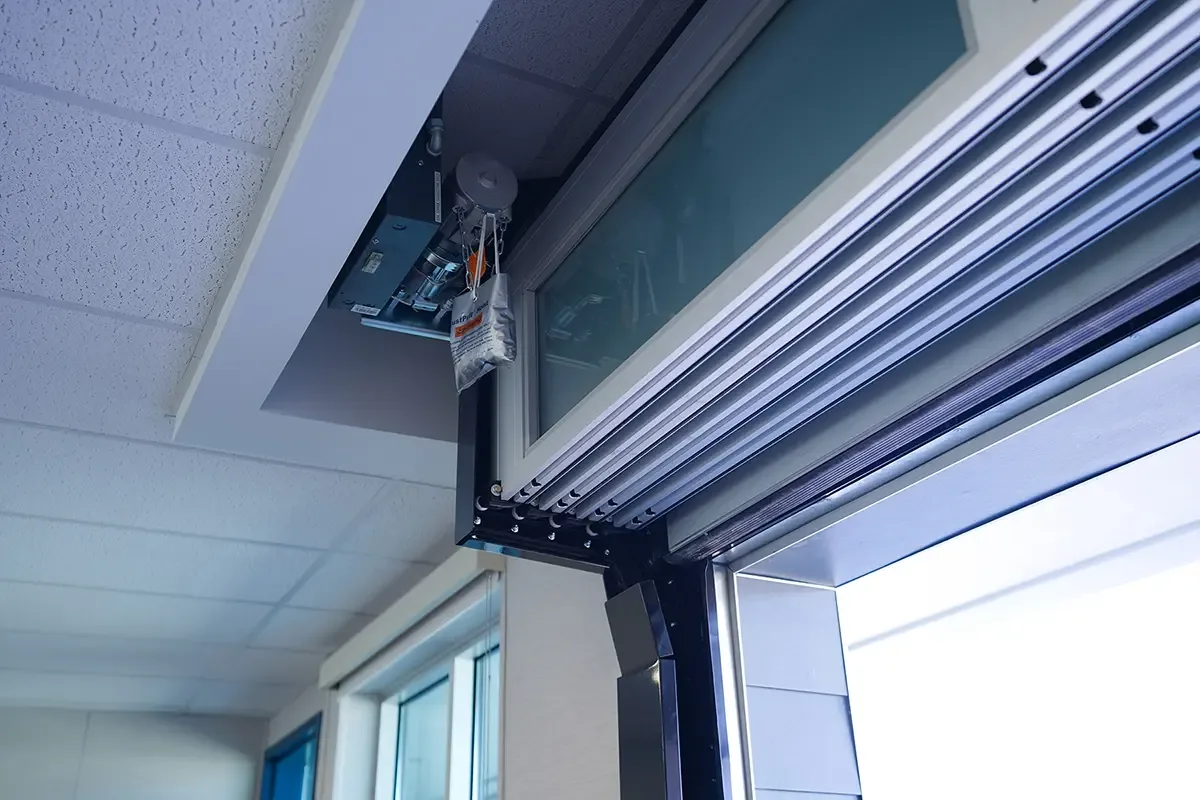

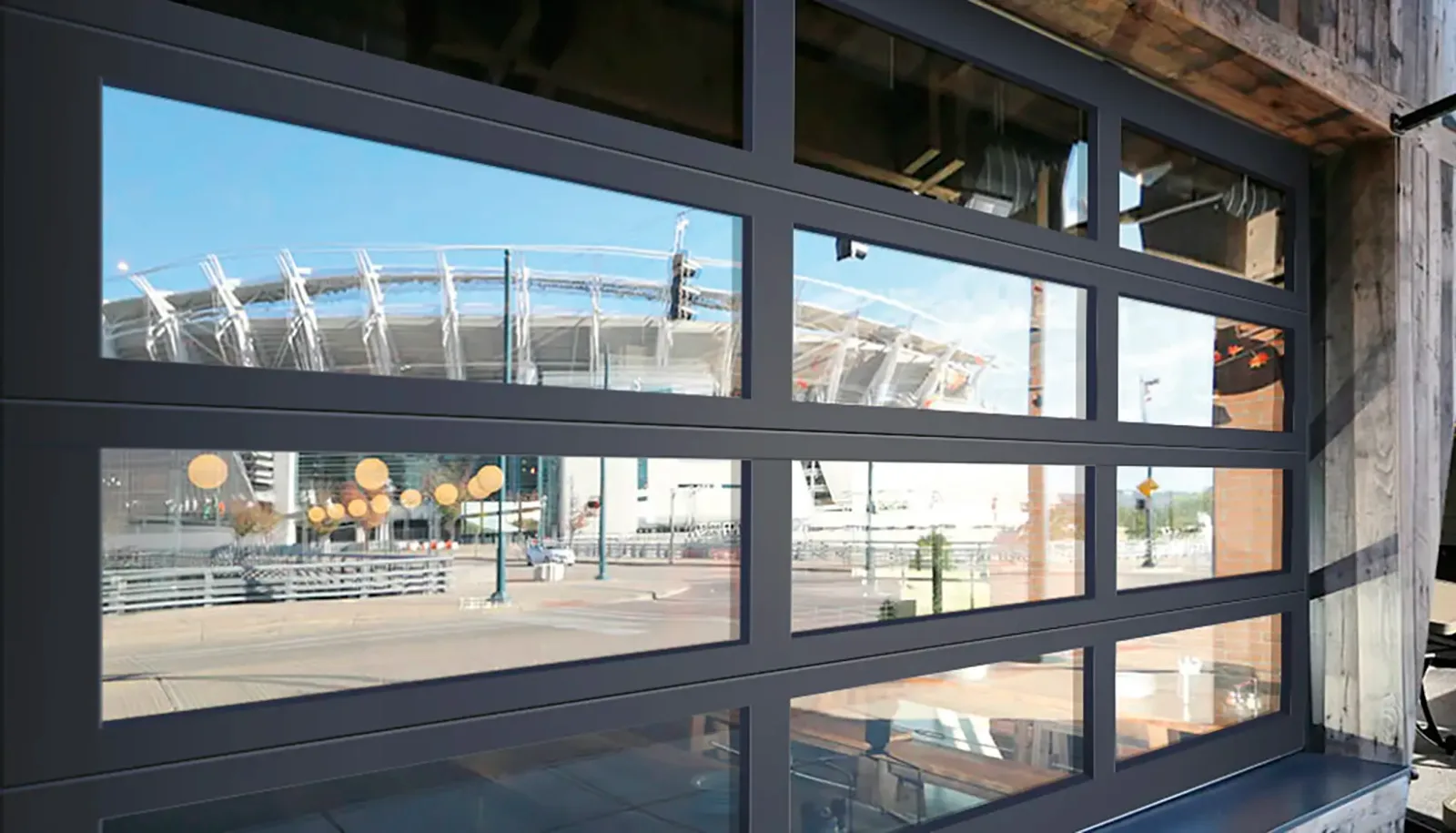

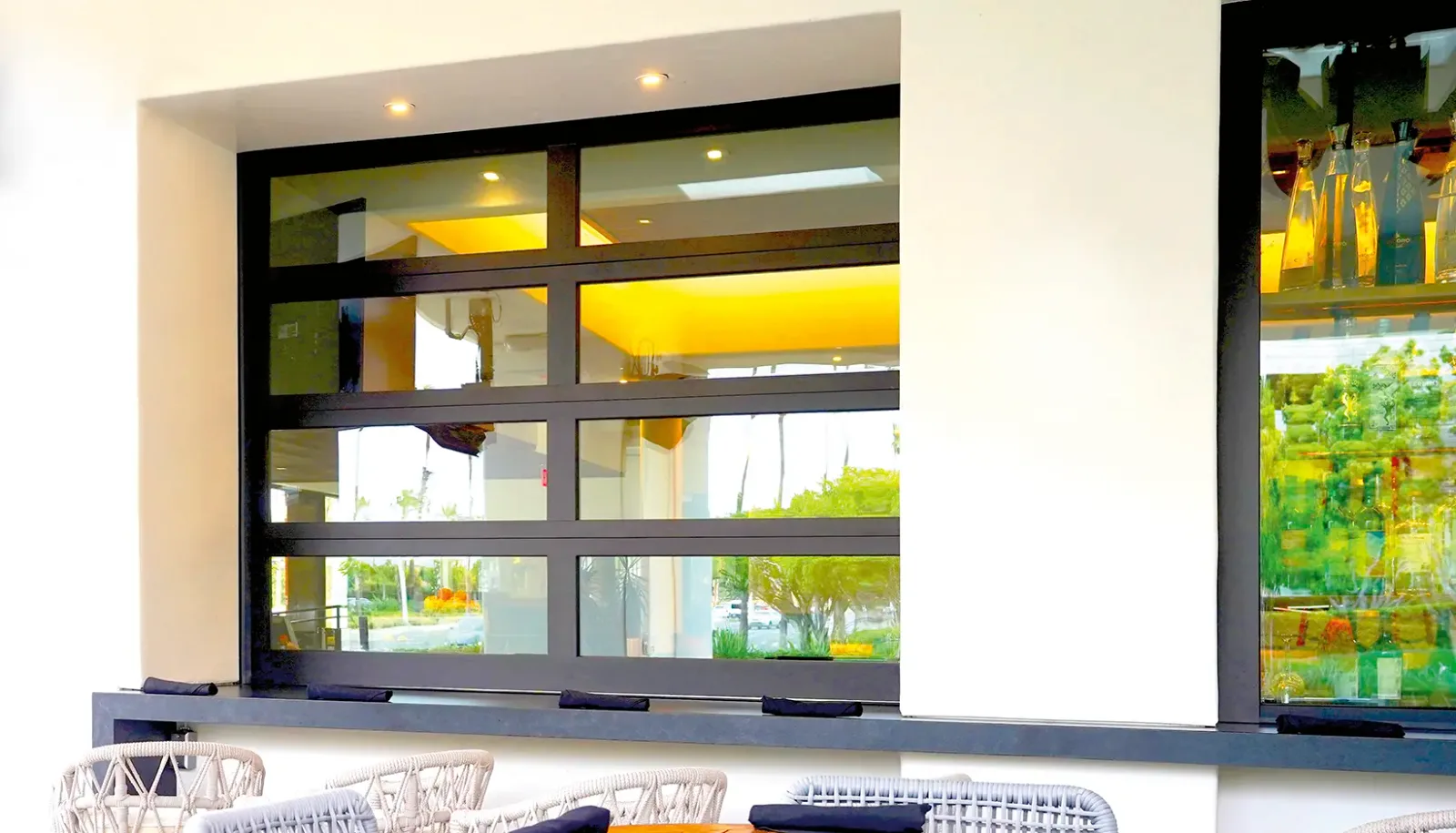

See the VertiStack® Clear Door
