Clopay Authorized Dealer
Commercial Sheet Doors
Sheet doors for self-storage and light commercial
Models
| 160C | Heavy Duty | 12" Coil |
|---|---|---|
| 157C | Medium Duty | 12" Coil |
| 150C | Light Duty | 9" Coil |
Options
Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides. The sheet door coils around a spring loaded shaft above the header as the door is opened. Designed with ease of installation in mind.
High Performance Hardware upgrade available
| 160C | Heavy Duty | 12" Coil |
|---|---|---|
| 157C | Medium Duty | 12" Coil |
| 150C | Light Duty | 9" Coil |
Construction
- 26 gauge hot-dipped galvanized steel curtain with a baked-on silicone polyester top coat.
- Roll-formed guides of hot-dipped galvanized steel (18 gauge 150C, 16 gauge 157C and 12 gauge 160C).
- Self-lubricating wearstrips on curtain prevent metal-to-metal contact and muffle door noise.
- Curtains are prepainted inside and out to inhibit rust. Hot-dipped, galvanized steel is painted with primer and given a tough oven-baked silicone polyester top coat, to provide the most rust-resistant steel door available.
- Heavy-duty bottom bar withstands the external elements.
- Full bulb-type bottom weatherstrip ensures proper fit along irregular floors.
Standard Colors
Specs/Drawings
Brochures
150C, 157C, 160C Brochure

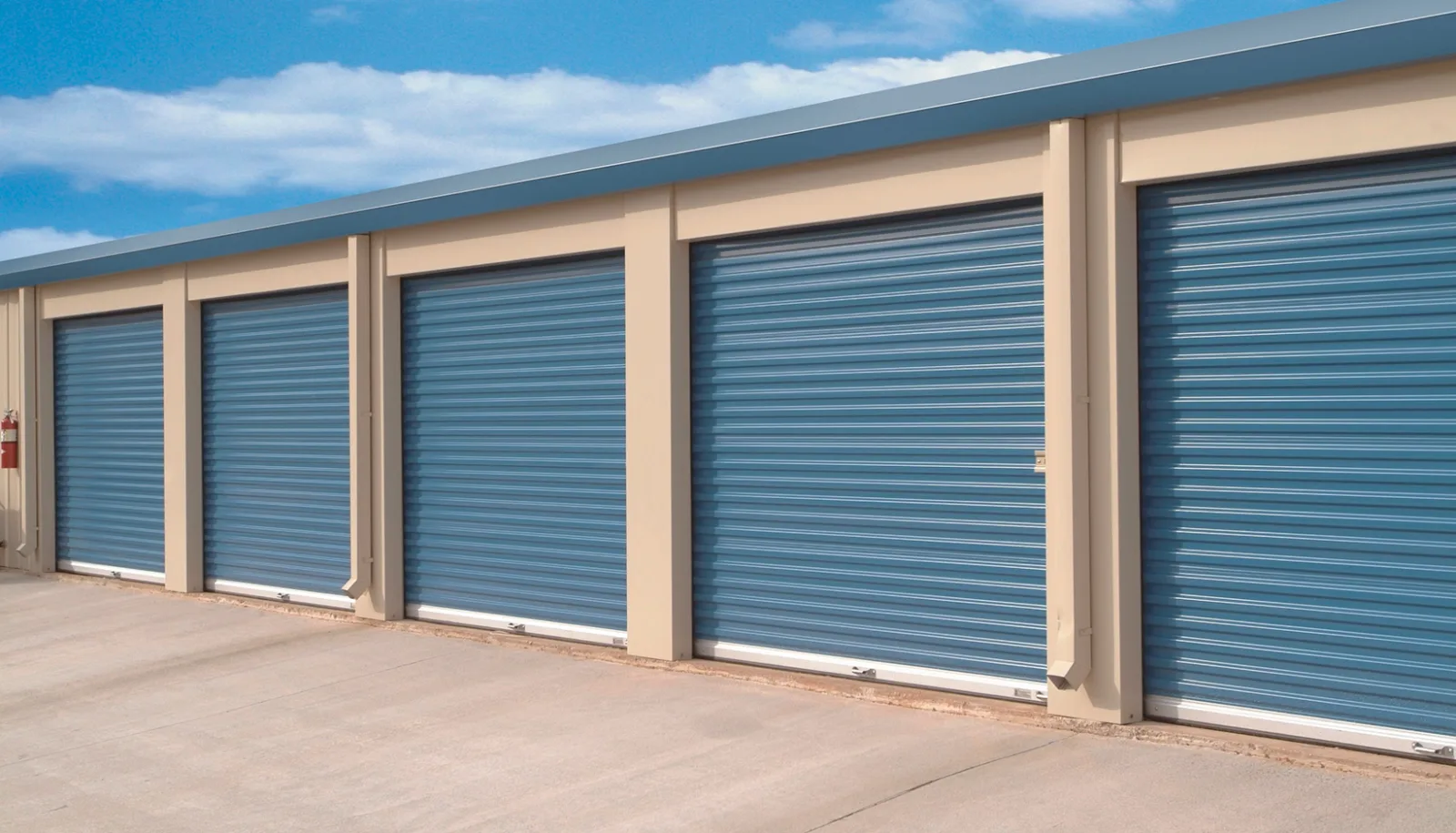

Ideal for mini-warehouses and storage facilities, Clopay Roll-Up Sheet Doors are low-maintenance, long-lasting, and easy to install.
Brochure Commercial Idea Book
At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.
Request a commercial quote — Commercial Sheet Doors
We measure, specify, and install Clopay commercial doors across Central Florida.
