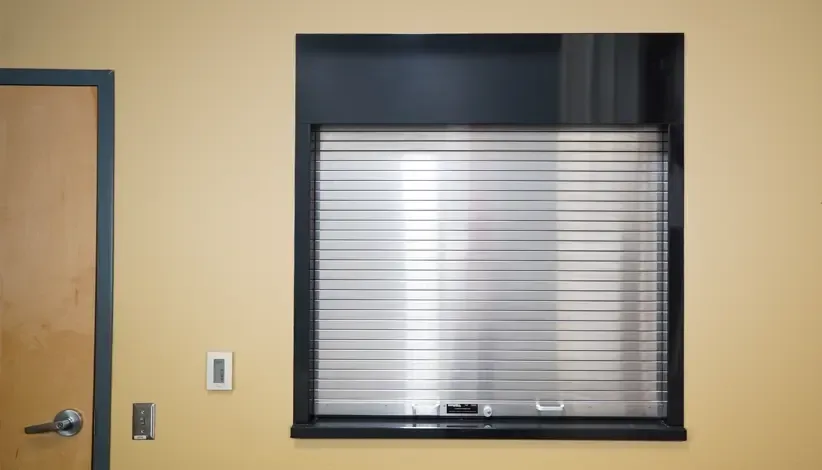

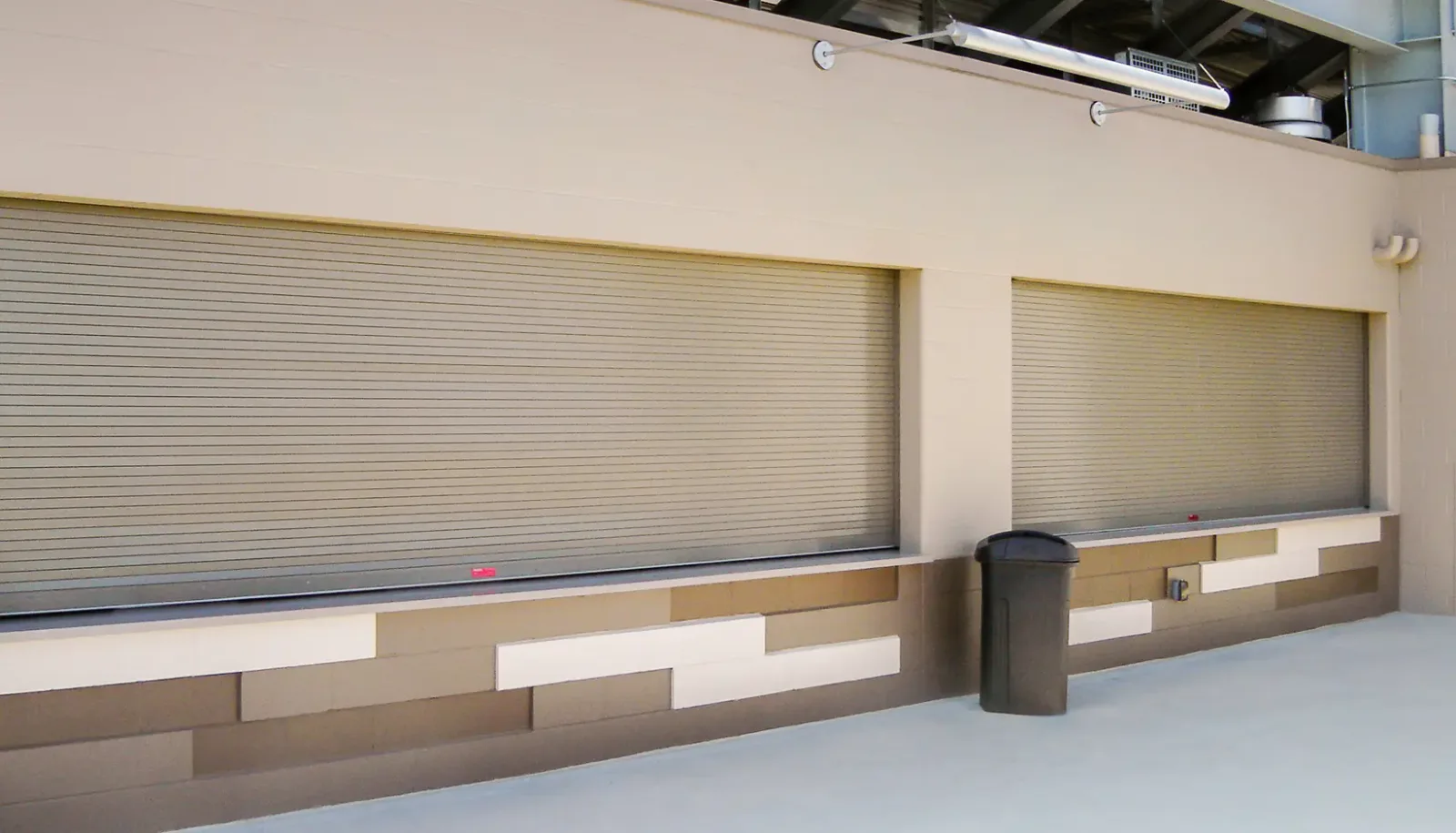

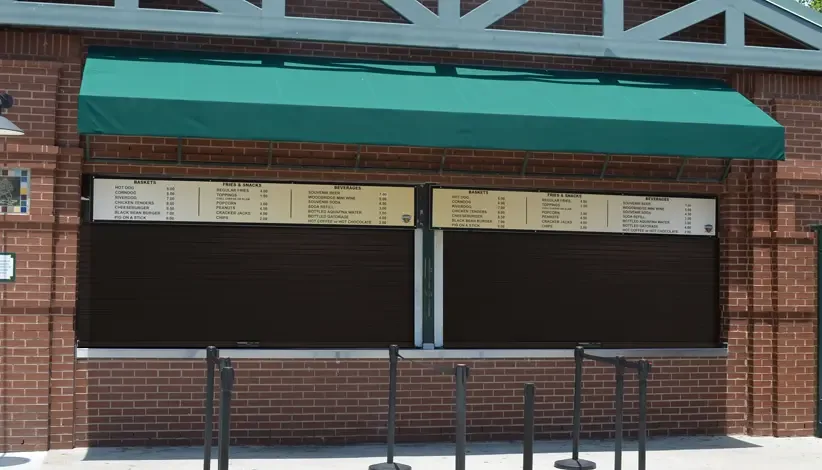

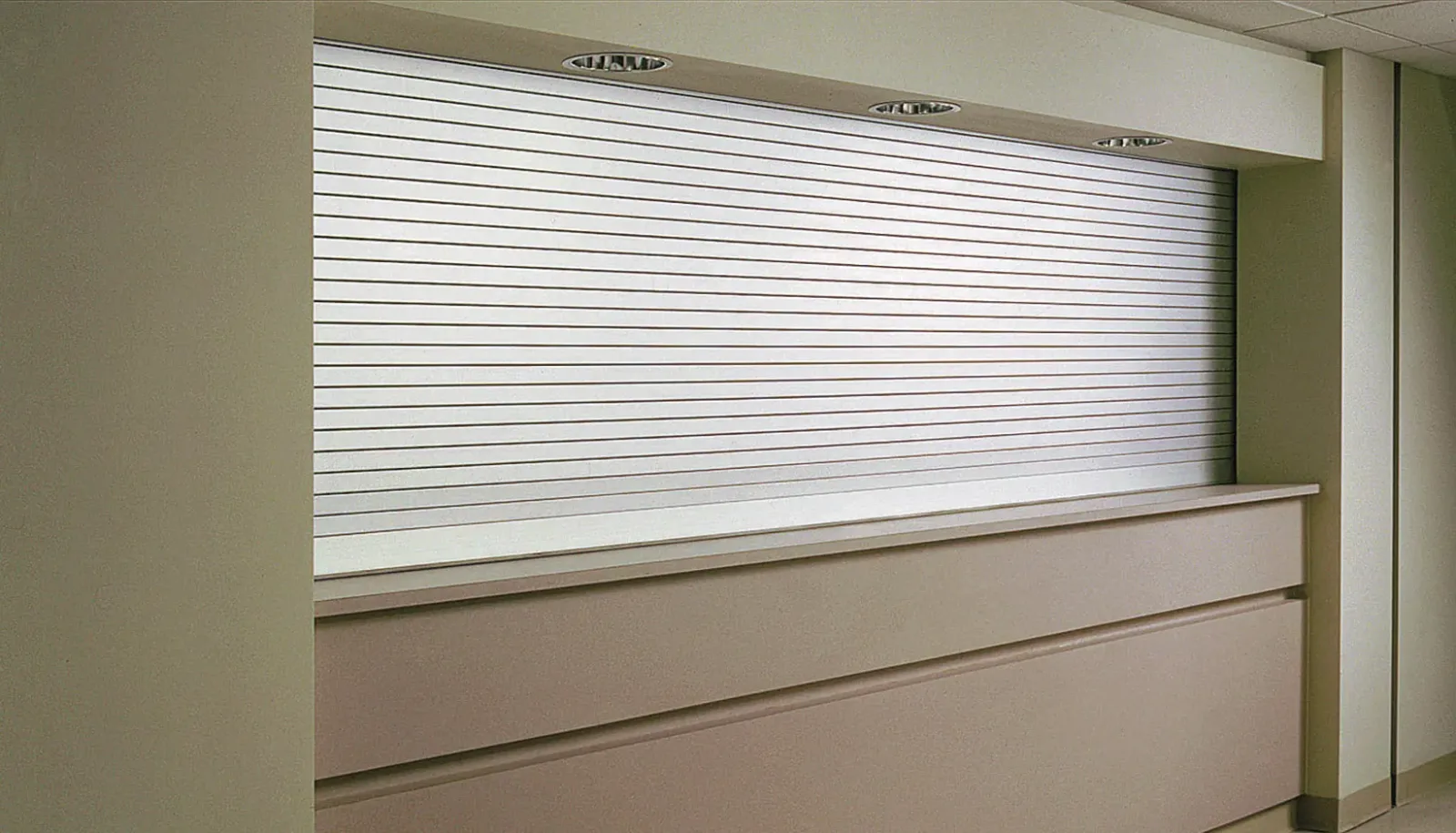

Rolling Counter Door

SpectraShield™ Powder Coating – It is a Polyester finish in more than 180 colors offering durability, aesthetics, superior finish life and cost effectiveness.

Omni Powder Coat – Allows you to match your rolling steel doors with select sectional doors to create a unified look. Available in:

AtmoShield™ Powder Coating – It is a textured finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added protection.

Hood and Operator Covers – Metal cover designed to shield the coil or operator from outdoor elements, debris, or to comply with OSHA or UL 325 safety standards.

Vinyl Graphics –Enhance your curtains and hoods with lasting, full-color imagery. A must for school logos and smart way to turn your door into a lucrative sponsorship opportunity in stadiums, amusement parks and retail spaces.

Vision Windows–One- or two-way windows can be added to the curtain to boost the look and visibility of your door.

LED Light Kit – Provides a high-visible status indication for rolling doors and grilles.

Magic Switch – A touchless activation system designed to operate doors and grilles with the wave of a hand. It is compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. High Cycle Construction – Upgrade to a special higher-cycle construction for up to 100,000 cycles.

Seismic Performance Validation – Project specific seismic calculations are available for all rolling doors that are mounted face of wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Sensing Edge - Designed with a flexible black rubber TPE material, our sensing edge has two fins that form to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to over set the bottom door limit. On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590.

SafetyGard UL325 Approved Light Curtain – Prevents damage to an object in the door’s opening and minimizing damage to the closure itself.

Entrapment Protection Device – Ensures that a motorized door or grille will not close on an object. If an object enters the opening, the entrapment protection device will stop the door or grille from closing and return to the fully open position.

Windload - Can be configured to withstand the full range of specific wind load requirements including missile impact ratings.

SmartSync™ Wireless Safety Edge – This is used to upgrade the existing sensing edge to wireless communication between the transmitter and the receiver. This eliminates the coiling cord in the door opening.

Our Rolling Counter Doors are constructed for daily use.

Standard construction up to 21’ wide, 10’ high (limit of 180 square feet)

Wind load construction of up to 14' wide, 10' high (limit of 140 square feet)

.040" thick clear anodized aluminum

22 gauge galvanized steel

22 gauge 304 series stainless steel
