Canyon Ridge Chevron

45-degree chevron planks — faux wood that is not a typical carriage door

Overview

Clopay Canyon Ridge® Chevron turns the classic V-pattern into a garage door. Five layers: composite overlay, composite cladding, steel, 2" Intellicore®, steel. Official R-value is 20.4. Planks are cut at 45 degrees. Four cladding patterns (A, D, U, V) across designs 11, 12, 13, 31–33, 36, and 37 — fifteen variations. Clear Cypress or Mahogany, paint or stain, two-tone, and Color Blast®. Max size 20' 2" × 10' 0". No visible steel on the face.

Chevron is the door when the homeowner is tired of X-brace carriage doors and still wants wood character. Cape Cod, coastal, and updated farmhouse jobs sell this look.

Insulation: R-20.4

Overhead Door of America is an official Clopay dealer. Factory details: Clopay product page.

Recommended Opener

LiftMaster Elite Series

We size the opener to door weight, insulation, and your Wi-Fi / battery-backup needs.

View Openers Free In-Home Estimate

Why homeowners choose this door

True chevron

45-degree planks in four pattern options — not a printed graphic.

R-20.4

2" Intellicore® in a five-layer build. Quiet and comfortable.

15 variations

Wide or narrow planks, solid or windowed tops.

No wood chores

Composite will not rot, warp, or crack in Florida humidity.

Looks right on

Cape Cod
Coastal / beach
Farmhouse
Homes that want a geometric wood door

At a glance

Clopay model: Canyon Ridge® Chevron
Layers: 5
R-value: 20.4
Pattern: 45° chevron, 4 cladding options
Max size: 20' 2" × 10' 0"

Impact-rated windows in clear glass only
WindCode® reinforcement is available for Central Florida wind-load and coastal counties. We size hardware and reinforcement to your opening and local code.

Construction

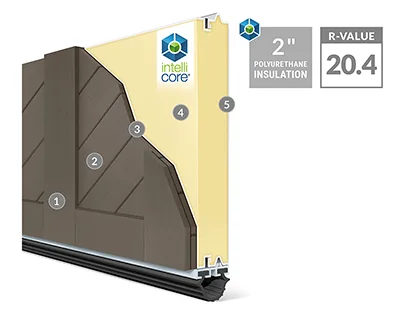

5-layer: overlay + cladding + steel + 2" Intellicore® + steel
Composite molded from real wood (Clear Cypress or Mahogany)
Hot-dipped galvanized steel, baked-on primer and topcoat
Safe-T-Bracket®; WindCode® available

Design Options

Cladding options A, D, U, V on multiple door designs
Tops: solid chevron, REC11/13/14, SQ23/24, ARCH1/3/4/13/14
Spade handles standard; spear, colonial, knockers, strap hinges optional

Colors & finishes

Espresso, Medium, Natural, Dark, Walnut, Slate
Black, White, Bronze, Charcoal (Mahogany)
Two-tone base/overlay; Color Blast®

Glass & windows

Clear
Seeded
Rain
Frosted
Obscure
Impact-rated clear

Questions we hear

Is the chevron real boards or a print?

Real composite planks, cut at 45 degrees and laid in the V. It is not a printed pattern on a flat door.

Can Overhead Door of America install a Canyon Ridge Chevron on my home?

Yes. We are an official Clopay dealer. We measure the opening, confirm wind-load needs, help you choose color and windows, and install the door with a matching LiftMaster opener when you want one.

Do these doors work in Florida heat, humidity, and storms?

Yes. We specify rust-resistant hardware, proper weather seals, and WindCode® reinforcement where required. Insulated models also help keep an attached garage more comfortable in summer.
