ENERGY SERIES WITH INTELLICORE®

Polyurethane Insulated Steel Commercial Overhead Doors by Clopay



polyurethane insulated steel doors
r-values to 22.2

Climate control, reliability, durability– our premier, thermally broken, polyurethane insulated steel garage doors have it all, providing excellent temperature control, energy efficiency and long-lasting service for a wide range of applications, such as firehouses, warehouses, and municipal buildings.

Model Thickness Emboss Exterior Steel Pattern Intellicore Logo R-Value* Std Max Width** Std Max Height
3730 3″ Stucco 27 Gauge Ribbed
Intellicore
22.2 30’2″ 20’0″
3722 2″ Stucco 20 Gauge Flush
Intellicore Logo
18.4 32’2″ 20’0″
3724 2″ Stucco 24 Gauge Ribbed
Intellicore Logo
18.4 36’2″ 20’0″
3720 2″ Stucco 27 Gauge Ribbed
Intellicore Logo
18.4 36’2″ 20’0″
3717 1 3/4″ Stucco 27 Gauge Ribbed
Intellicore Logo
16.2 24’2″ 20’0″
3718 1 3/4″ Stucco 27 Gauge Flush
Intellicore Logo
16.2 24’2″ 20’0″
3715 1 3/8″ Stucco 27 Gauge Ribbed
Intellicore Logo
12.9 18’2″ 16’0″

Intellicore®doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.



Design Options:

  • Windows
  • 24″x8″
  • 24″x12″
  • Full View (pre-painted white or brown or clear anodized)
  • Black frame Window with Rounded Corners



Colors:

  • White – All Models
  • Brown – All Models
  • Black – 3724
  • Tan – 3715, 3717, 3718, 3724
  • Gray – 3715, 3717, 3718, 3724
  • ColorBlast – All models

Performance Options:

  • High Cycle Springs (25K, 50K and 100K available)
  • 3″ heavy duty track (where not standard)
  • Outside keyed Security Lock
  • Double End Stiles
  • Design pressure rated (WindCode)
  • Impact Rated
  • Photo eyes, sensing edges and Operators
  • Sustainable Door Upgrade
  • Header (top) and Jamb Seals

Custom Options:

  • Mullions
  • Breakaway Sections
  • Pass Door

MODEL 3730

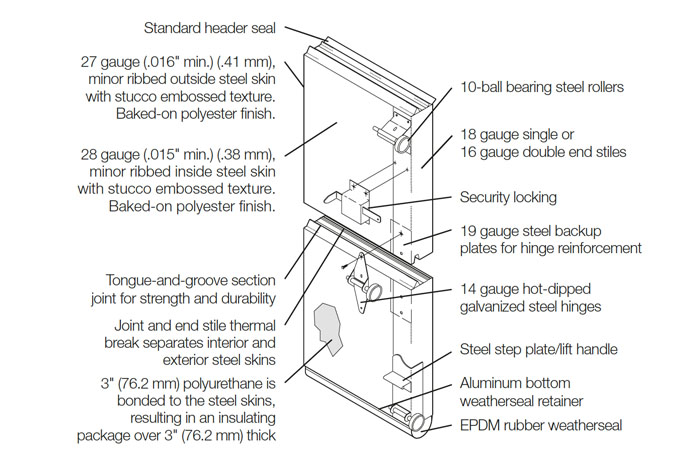

features 3730
Panel Design: 3″ thick stucco embossed ribbed steel exterior
Steel Gauge: 27 gauge (.016″ min) exterior; 28 gauge (.015″ min) interior
Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity: R-value 22.2* for maximum energy efficiency
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors: Snow mist white, commercial brown,ColorblastTM
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship

MODEL 3720 / 3724 / 3722

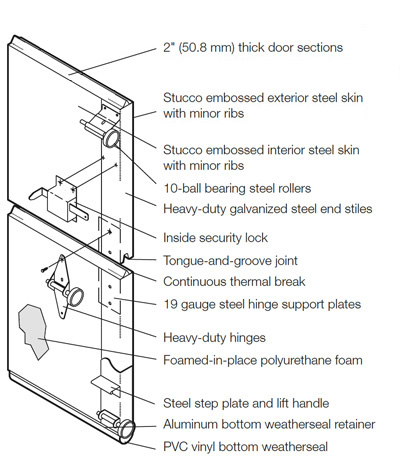

features 3720, 3724, 3722
Panel Design: (3720 & 3724) 2″ thick stucco embossed steel exterior with minor ribbed pattern

(3722) 2″ thick stucco embossed flush steel exterior

Steel Gauge: (3720) 27 gauge (.016″ min) exterior; 28 gauge (.015″ min) interior
(3724) 24 gauge (.022″ min) exterior; 28 gauge (.015″ min) interior
(3722) 20 gauge (.034″ min) exterior; 28 gauge (.015″ min) interior
Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity: R-value 18.4* for maximum energy efficiency
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors: (3720 & 3722) Pre-painted snow mist white, commercial brown
(3724) Pre-painted snow mist white, brown, commercial tan, gray and Trinar white
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship

MODEL 3717 / 3718

features 3717 and 3718
Panel Design: (3717) 1 3/4″ thick stucco embossed steel exterior with minor ribbed pattern

(3718) 1 3/4″ thick stucco embossed flush steel exterior

Steel Gauge: 27 gauge (.016″ min) exterior; 28 gauge (.015″ min) interior
Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity: R-value 16.2* for maximum energy efficiency
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors: Pre-painted snow mist white, commercial brown, tan or gray. Optional Trinar white.
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship

MODEL 3715

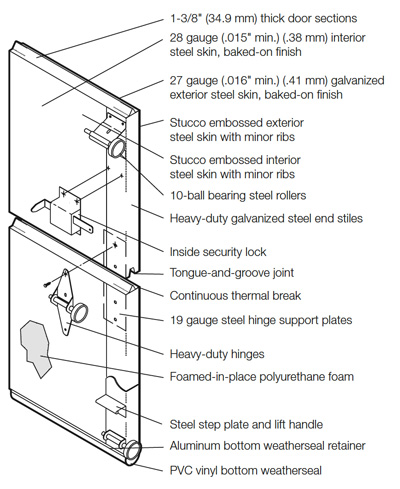

features 3715
Panel Design: 1 3/8″ thick stucco embossed steel with minor ribbing
Steel Gauge: 27 gauge (.016″ min) exterior; 28 gauge (.015″ min) interior
Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity: R-value 12.9* for maximum energy efficiency
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors: Pre-painted snow mist white or commercial brown, tan and gray
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship

*Calculated door section R-value is in accordance with DASMA TDS-163.



  image       3730 Brochure





  image       3722 Brochure





  image       3724 Brochure





  image       3720 Brochure





  image       3717, 3718 Brochure





  image       3715 Brochure





  image       Bottom Breakaway





COMMERCIAL HARDWARE

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increase security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements



COMMERCIAL TRACK APPLICATIONS

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more

COMMERCIAL TORSION SPRINGS

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details
