Simple forms invite the beauty of natural handcrafted wood to stand out, laying the foundation for a warm and welcoming home.
Raised Panel Wood Garage Door

CLASSIC WOOD COLLECTION

RAISED PANEL WOOD GARAGE DOORS
MODEL 44 RAISED PANEL
  • 1-3/8″ section thickness
  • Long or short panels w/ optional windows
  • Paint or stain-grade wood
  • Hemlock, cedar or redwood


Recessed Panel Wood Garage Door
RECESSED PANEL WOOD GARAGE DOORS
MODEL 20/10 RECESSED PANEL
  • 1-3/8″ section thickness
  • Long or short panel
  • Paint or stain-grade wood
  • Hemlock wood frame


Flush Panel Wood Garage Door
FLUSH PANEL WOOD GARAGE DOORS
MODEL 33 FLUSH PANELS
  • Three-layer construction
  • Paint or stain-grade wood
  • Smooth Luan or Breckenridge exterior panel
  • Energy-efficient insulation

Lift Master

LIFT MASTER® ELITE SERIES™

Clopay recommends the LiftMaster® ELITE Series opener for these garage doors.

RAISED PANEL WOOD GARAGE DOORS
MODEL 44 RAISED PANEL
  • 1-3/8″ heavy-duty stile and rail and dowel pin construction. Wood species include Redwood, Cedar and Hemlock.
  • Handcrafted short or long raised panels in Redwood, Cedar, Hemlock (stain grade) or MDF (paint grade).
  • Windows with six handcrafted wood decorative window designs available. See window design options.
  • Multiple panel and section configurations available. See your Clopay Dealer for details.
  • All doors can be factory primed or finish painted white.
  • Seven factory finished stain options are available on all stain grade wood species, resulting in stain colors that complement most home trim and entry door colors.

Warranty Information

Limited Warranty

Model 44 Series

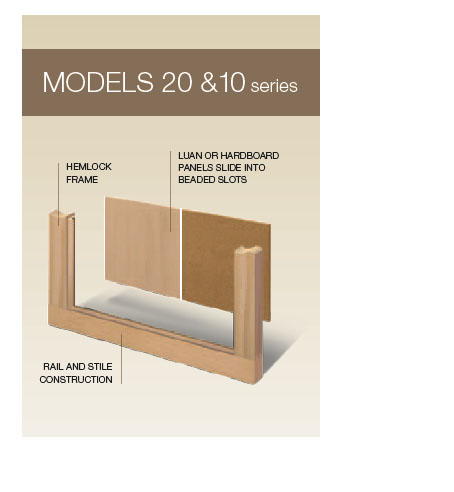

RECESSED PANEL WOOD DOORS
MODEL 20 & 10 SERIES
  • 1-3/8″ stile and rail and dowel pin construction in Hemlock.
  • Flat panels available in Luan, Breckenridge and hardboard. Most available in stain grade or paint grade options.
  • Six optional handcrafted decorative window designs available on Model 20. See windows for availability.
  • Multiple panel and section configurations available. See your Clopay Dealer for details.
  • Factory priming and white finish paint available.
  • Seven factory finished stain options are available on all stain grade wood species, resulting in stain colors that complement most home trim and entry door colors.

Warranty Information

Limited Warranty

Models 20 & 10 Series

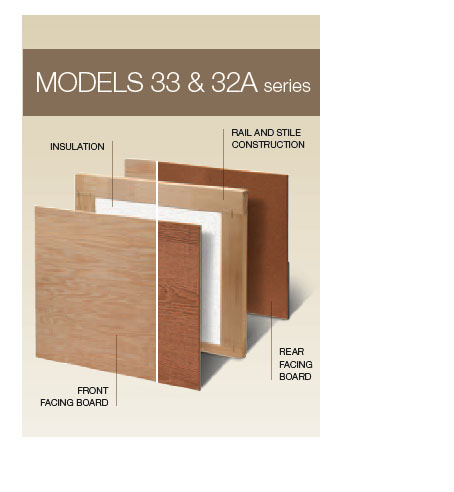

FLUSH PANEL WOOD DOOR
MODEL 33 SERIES
  • Heavy-duty 1-5/8″ section thicknesses.
  • Three-layer construction with polystyrene sandwiched between interior and exterior boards. Interior Luan. R-value 5.9.
  • Exterior woods include smooth Luan and Breckenridge on the Model 33 Series.
  • Model 33 available in stain or paint grade options. Factory priming and white finish paint available.
  • Seven factory finished stain options are available on all stain grade wood species, resulting in stain colors that complement most home trim and entry door colors.

Warranty Information

Limited Warranty

Models 33 & 32A Series
RAISED PANEL WOOD GARAGE DOORS
MODEL 44 RAISED PANEL
Classic Wood Raised Panel Door Options
Door Finishes Classic Wood Model 44 Door Finishes

RECESSED PANEL WOOD GARAGE DOORS
MODEL 20/10 RECESSED

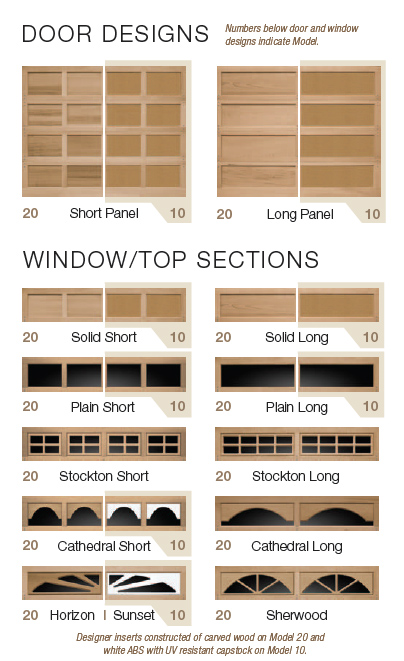

Door Design Options




FLUSH PANEL WOOD DOORS
MODEL 33 FLUSH PANELS
Classic Wood Flush Panels Door Design Options

Door Finishes

Factory Finish Stain or Paint Option

Seven factory  stained options are available on certain models (check with your local distributor/retailer for details) resulting in stain colors that complement most home trim and entry door colors.  Click HERE to see all stain colors available.

When you take advantage of Clopay’s factory finish paint option,* your wood garage door arrives primed, painted and ready to install. We’ve eliminated the extra steps of hiring a contractor to finish the door on site and the added worry that the job will be done right. The door is stored and finished according to Clopay warranty guidelines, for a durable, flawless, vibrant finish, worthy of the most discriminating close-ups.

Door panels are sealed with a paint-able caulk to resist moisture and then treated with a layer of primer followed by two coats of white latex paint.

*Not available on redwood or cedar garage doors.

Insulated steel base door with durable Ultra Grain® finish. Clear Cypress composite overlays applied to steel base door.  An economical alternative to Canyon Ridge® Limited Edition.

CANYON RIDGE® COLLECTION

ULTRA-GRAIN® SERIES

  • Composite overlay material is molded from actual wood to replicate the species’ natural texture and intricate grain patterns.
  • Four-layer construction: steel + insulation + Ultra-Grain steel + overlay (see construction tab).
  • 2″-Intellicore® insulation with a thermal break.   R-value of 18.4.Calculated garage door section R-value is in
    accordance with DASMA TDS-163.
  • Clear Cypress composite overlay material.
  • Factory finish options are Walnut and Medium.
  • Utilizes Ultra-Grain steel finish: a durable, natural-looking woodgrain paint finish.
  • Your choice of rectangular, square, true arched window designs in clear, obscure, seeded or insulated glass. Window grilles are removable for ease of cleaning.
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.

Lift Master

LIFT MASTER® ELITE SERIES™

Clopay recommends the LiftMaster® ELITE Series opener for these garage doors.

CANYON RIDGE® COLLECTION
ULTRA-GRAIN® SERIES
  1. COMPOSITE OVERLAY
  2. STEEL WITH ULTRA-GRAIN PAINT FINISH
  3. 2″ INTELLICORE® INSULATION
  4. STEEL


Warmer. Quieter. Stronger.Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength and durability. Read More.

Warranty Information

Shown in Medium Finish with Clear Cypress Overlays. See Design Options tab for composite cladding and overlay options (Material Design Options) .

CANYON RIDGE® COLLECTION
ULTRA-GRAIN® SERIES

Customize your Canyon Ridge Ultra-Grain Collection Series garage doors with your choice of panel design, top section, decorative hardware and stain or paint.

Illustrations below are shown in the Medium finish. Walnut Finish also available. See below.
Insulated steel base door with durable Ultra Grain® finish. Clear Cypress composite overlays applied to steel base door.  An economical alternative to Canyon Ridge® Limited Edition.

CANYON RIDGE® COLLECTION

ULTRA-GRAIN® SERIES

  • Composite overlay material is molded from actual wood to replicate the species’ natural texture and intricate grain patterns.
  • Four-layer construction: steel + insulation + Ultra-Grain steel + overlay (see construction tab).
  • 2″-Intellicore® insulation with a thermal break.   R-value of 18.4.Calculated garage door section R-value is in
    accordance with DASMA TDS-163.
  • Clear Cypress composite overlay material.
  • Factory finish options are Walnut and Medium.
  • Utilizes Ultra-Grain steel finish: a durable, natural-looking woodgrain paint finish.
  • Your choice of rectangular, square, true arched window designs in clear, obscure, seeded or insulated glass. Window grilles are removable for ease of cleaning.
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.

Lift Master

LIFT MASTER® ELITE SERIES™

Clopay recommends the LiftMaster® ELITE Series opener for these garage doors.

CANYON RIDGE® COLLECTION
ULTRA-GRAIN® SERIES
  1. COMPOSITE OVERLAY
  2. STEEL WITH ULTRA-GRAIN PAINT FINISH
  3. 2″ INTELLICORE® INSULATION
  4. STEEL


Warmer. Quieter. Stronger.Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength and durability. Read More.

Warranty Information

Shown in Medium Finish with Clear Cypress Overlays. See Design Options tab for composite cladding and overlay options (Material Design Options) .

CANYON RIDGE® COLLECTION
ULTRA-GRAIN® SERIES

Customize your Canyon Ridge Ultra-Grain Collection Series garage doors with your choice of panel design, top section, decorative hardware and stain or paint.

Illustrations below are shown in the Medium finish. Walnut Finish also available. See below.
